Home > Thunderbolt 5 CubeDock™ with SSD Enclosure

Thunderbolt 5 CubeDock™ with SSD Enclosure

$399.99

Plug - US

  • Thunderbolt 5 connectivity powers displays, data, and accessories via one cable
  • Built-in NVMe SSD enclosure expands high-speed storage without extra drives
  • Supports multi-display setups up to 8K for professional workflows
  • Delivers up to 140W laptop charging with active cooling in a compact design
LEARN MORE

Popular Add-On:

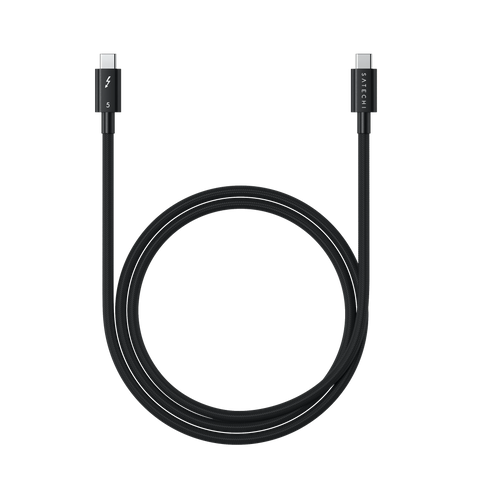

Thunderbolt 5 Pro Cable
Thunderbolt 5 Pro Cable
$39.99

*PRE-ORDER : Starts Shipping End of March

30 Day Returns
2 Year Warranty
Free US Shipping Over $40

Dimensions & Weight

  • Length: 12.7 cm / 5 in.
  • Width: 12.7 cm / 5 in.
  • Height: 5.2 cm / 2.04 in.
  • Weight: 588.9 g

SKU (Color)/ UPC

  • ST-DT5CES-US (Silver)/ 810086362592

Technical Specifications

  • 1 x Thunderbolt 5 (Upstream):
  • 80/120Gbps, up to 140W host charging
  • 3 x Thunderbolt 5 (Downstream):
  • 80Gbps Data Bandwidth each
  • 15W power output each
  • Single Display up to 8K@144Hz (Windows), 6K@60Hz (macOS)
  • Dual Display up to 8K@120Hz each (Windows) , 6K@60Hz each (macOS)
  • Triple Display up to 8K@60Hz each (Windows)
  • Triple Display not supported on macOS
  • 1 x M.2 SSD Enclosure
  • Supports 2230/2242/2260/2280 M.2 NVMe SSD sizes
  • Up to 8TB capacity
  • Up to 6000MB/s
  • 1 x USB-C Data + Power: Up to 10Gbps, up to 30W charging
  • 1 x USB-C Data: Up to10Gbps, up to 7.5W charging
  • 1 x USB-A Data 1 (Front): Up to10Gbps, up to 7.5W charging
  • 1 x USB-A Data 2 (Back): Up to10Gbps, up to 4.5W charging
  • 1 x SD Card Reader: UHS-II, up to 312MB/s
  • 1 x microSD Card Reader: UHS-II, up to 312MB/s
  • 1 x 3.5mm Audio Jack: Output/ Input Support
  • 1 x 2.5G Ethernet Port1 x DC Port: 180W Smart Power Supply

Important Information

  • Designed Thunderbolt 5 devices.
  • Downwards compatibility with Thunderbolt 4, USB4, Thunderbolt 3, USB-C devices.(Speeds may vary)
  • SSD not included.

MacBook Pro

  • MacBook Pro M5 (14-inch, 2025)
  • MacBook Pro M4 Pro/ M4 Max (14” & 16”, 2024)
  • MacBook Pro M4 (14-inch, 2024)
  • MacBook Pro M3 Pro/ M3 Max (14” & 16”, 2023)
  • MacBook Pro M3 (14-inch, 2023)
  • MacBook Pro M2 Pro/ M2 Max (14” & 16”, 2023)
  • MacBook Pro M2 (13-inch, 2022)
  • MacBook Pro M1 Pro/ M1 Max (14” & 16”, 2021)
  • MacBook Pro M1 (13-inch, 2020)

MacBook Air

  • MacBook Air M4 (13” & 15”, 2025)
  • MacBook Air M3 (13” & 15”, 2024)
  • MacBook Air M2 (15-inch, 2023)
  • MacBook Air M2 (13-inch, 2022)
  • MacBook Air M1 (13-inch, 2020)

iMac

  • iMac M4 (2024)
  • iMac M3 (2023)
  • iMac M1 (2021)

Mac Mini

  • Mac Mini M4/ M4 Pro (2024)
  • Mac Mini M2/ M2 Pro (2023)
  • Mac Mini M1 (2021)

Mac Studio

  • Mac Studio M4 Max/ M3 Ultra (2025)
  • Mac Studio M2 Max/ M2 Ultra (2023)
  • Mac Studio M1 Max/ M1 Ultra (2022)

Mac Pro

  • Mac Pro M2 Ultra (2023)

Windows

  • Microsoft Surface Laptop Studio
  • Lenovo ThinkPad X13 Gen 2
  • Lenovo X1 Gen 1 Carbon
  • Dell XPS 13 9315
OS Compatibility**
  • Windows 11
  • macOS X 10.6-10.12 or later

**Windows PC System Requirements: Thunderbolt 5, Thunderbolt 4, Thunderbolt 3, USB4, or USB 3.2 Gen2 with DP Alt

Mode Type-C ports required for optimal use

What's In The Box

  • Thunderbolt 5 CubeDock™ with SSD Enclosure
  • Thunderbolt 5 Cable
  • 2x Thermal Pads
  • Screwdriver
  • 2x SSD Screws
  • 180W Smart Power Supply
  • User Manual

Quick Guide

Frequently Asked Questions

For California Residents

Important Information

  • Designed Thunderbolt 5 devices
  • Downwards compatibility with Thunderbolt 4, USB4, Thunderbolt 3, USB-C devices.(Speeds may vary)
  • SSD not included.

NEXT GEN INNOVATION

Thunderbolt 5 CubeDock™ with SSD Enclosure

    Next-Gen Technology

    Built for Real Performance

    Up to 8TB of M.2 NVMe storage (PCle 4x4), Powered by 180W Smart Supply, Up to triple 8K display support, fan keeps SSD and controllers 30-50% cooler under load.

    One Cube. Infinite Connections.

    Up to 120Gbps speed and 140W charging—everything you need in one compact Thunderbolt 5 cube.

    Modern office desk setup with a computer monitor, Thunderbolt 5 CubeDock™ with SSD Enclosure, Slim EX3 Wireless keyboard, and Slim EX Wireless Mouse on a wooden surface.

    One Cube. Infinite Connections.

    Up to 120Gbps speed and 140W charging—everything you need in one compact Thunderbolt 5 cube.
    An infographic showing the power output of the Thunderbolt 5 CubeDock™ with SSD Enclosure, 15W to iPhone, 7.5W to Apple Watch, up to 140W to MacBook, and up to 30W to an iPad.

    Charge, Connect, and Create Effortlessly

    One cube unites every connection—turning cable chaos into seamless simplicity.

Next-Gen Technology

Every Port You Need.

    An infographic of the Thunderbolt 5 CubeDock™ with SSD Enclosure's ports: USB-C Data + Power Po, USB-C Data port, USB-A Data Port, USB-A Data 2 (Back), SD Card Reader: UHS-II, microSD Card Reader, 3.5mm Audio Jack, Ethernet, DC Port, Thunderbolt 5 Ports, Kensington Lock.

    Built-In SSD Enclosure

    Add up to 8TB of M.2 NVMe storage (PCIe 4×4) and work directly from your dock at up to 6000MB/s speeds—no external drives required.

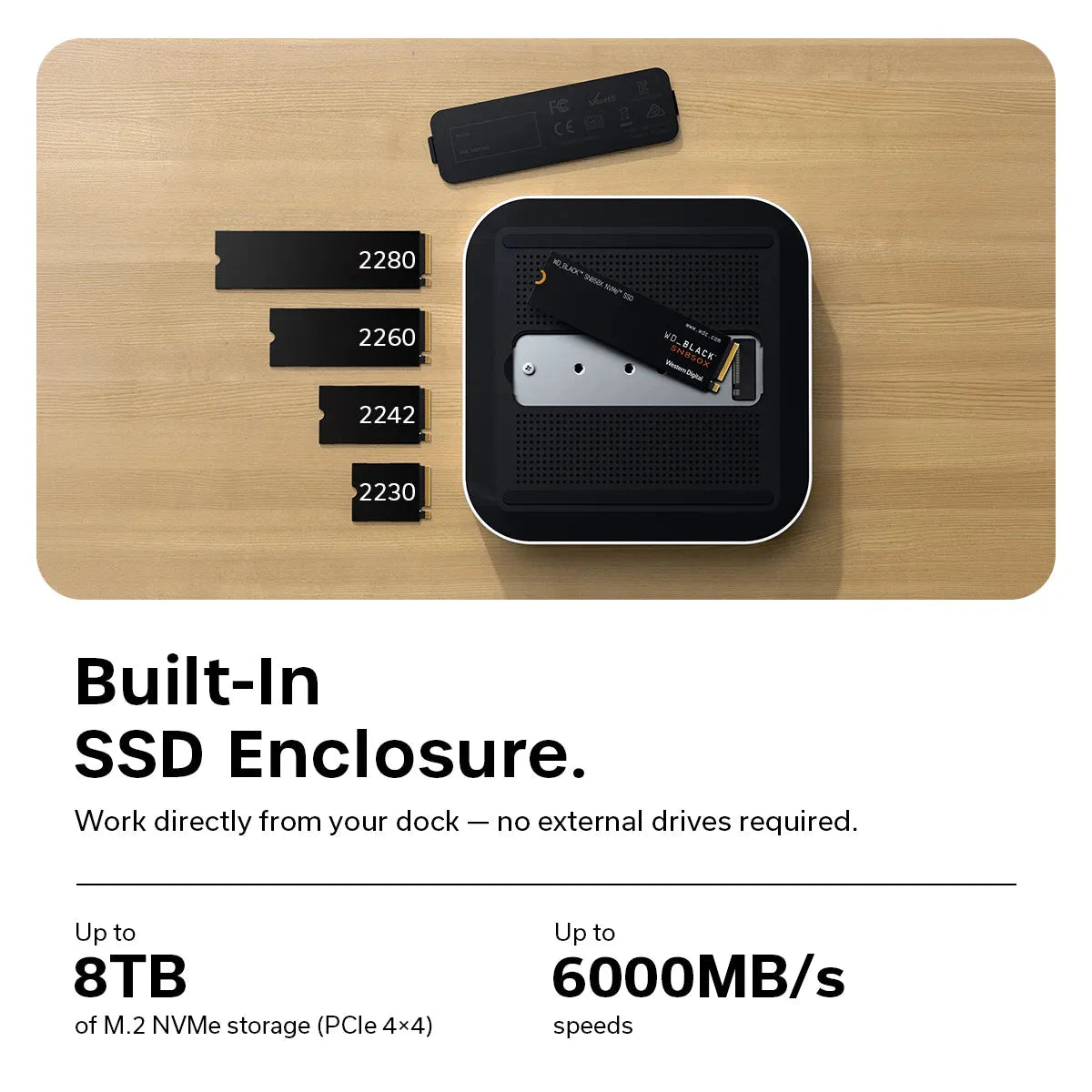

    A diagram showing the sizes of the SSD drices compatiable with the Thunderbolt 5 CubeDock™ with SSD Enclosure, 2280, 2260, 2242, 2230.

    Built-In SSD Enclosure

    Add up to 8TB of M.2 NVMe storage (PCIe 4×4) and work directly from your dock at up to 6000MB/s speeds—no external drives required.
    Gif of the Thunderbolt 5 CubeDock™ with SSD Enclosure fan and how air is filtered through to cool dock.

    Quiet Strength, Inside Out

    A smart fan curve and vented aluminum chassis maintain peak performance 30–50% cooler under load—whisper-quiet, steady, and built to last.

Workstation Essentials

Stunning Multi-Display Power

    Two desk setups with the Thunderbolt 5 CubeDock™ with SSD Enclosure, each showing multiple displays on a desk. Up to triple displays on Windows, and up to dual displays on macOS, not supported on M1/ M2 computers.

FAQ

The dock supports M.2 NVMe SSDs in the following sizes: 2230, 2242, 2260, and 2280.
It can accommodate SSD capacities up to 8TB. The dock supports read/write speeds up to 6000MB/s, depending on the SSD installed.

Yes, the dock is compatible with SSDs equipped with heatsinks, providing enhanced thermal management. Please note that the fit may be snug, and the use of excessively thick thermal pads could result in fitment issues.

Here are SSDs with heatsinks that we have tested and confirmed to be compatible:

Corsair MP600 Elite

WD Black SN850X

Crucial P310

Yes. It features an integrated fan that activates on demand, plus strategic ventilation to help dissipate heat efficiently.

Up to 140W to the host computer

Up to 30W via USB-C PD to connected peripherals

You can charge up to 8 devices simultaneously.

he dock is compatible with:

Thunderbolt 5 host devices

Thunderbolt 4/3 and USB4 (downward compatible)*

USB-C devices (downward compatible)*

It also supports daisy-chaining via Thunderbolt 5 ports.

Reduced performance may occur depending on the device’s capabilities.

***For more FAQ's please visit https://support.satechi.com/hc/en-us/articles/41501107119899-Product-FAQ-Thunderbolt-5-CubeDock-with-SSD-Enclosure
